360 Flush Bolts

Finish:

Brio 360 flush bolts are designed for internal and external folding window and door systems, as well as smaller sliding doors. The range includes options for both non-locking and locking variants and is offered in satin or polished stainless finishes, with lengths of 190mm and 300mm available.

Round-cut top lockable flush bolts.

Features a low-profile design to reduce the depth of the rebate to retain the strength of the timber stile
Ideally suited to modern machining operations
Rebate can be machined in a single router operation saving valuable installation time (Lockable variant requires additional routing)
Easy to install, fitted to the sash by just two screws that pass through the centre of the body and shoot bolt
Non-locking and locking options available for when extra security is required
Cranked and extended models available (non-locking only)

Minimum Door Thickness

Flush Bolt Length

Throw Length

Finish

Security

Application

35mm

110mm

300mm

600mm

1000mm

20mm

Locking and non-locking

External and internal folding window and door systems.

Code	Description	Finish

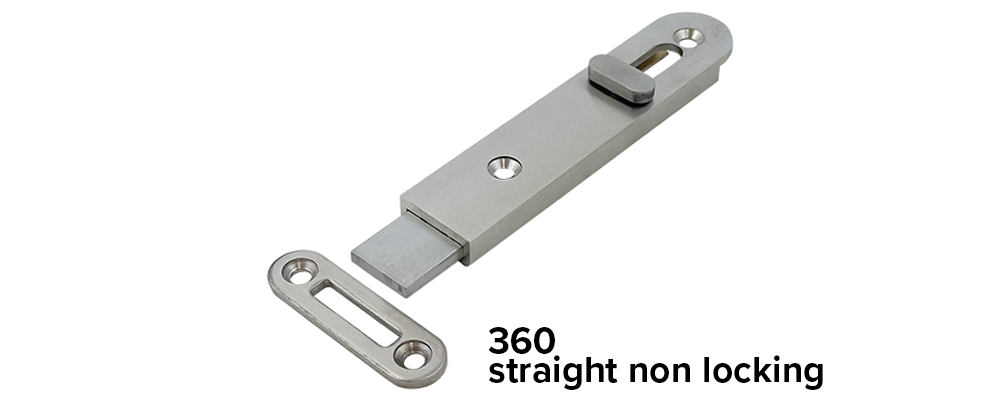

360	Straight non locking 110mm	SS - Stain Stainless PS - Polished Stainless
360E	Straight locking 110mm
360N	Offset non locking 110mm
360L	Straight non locking 300mm
